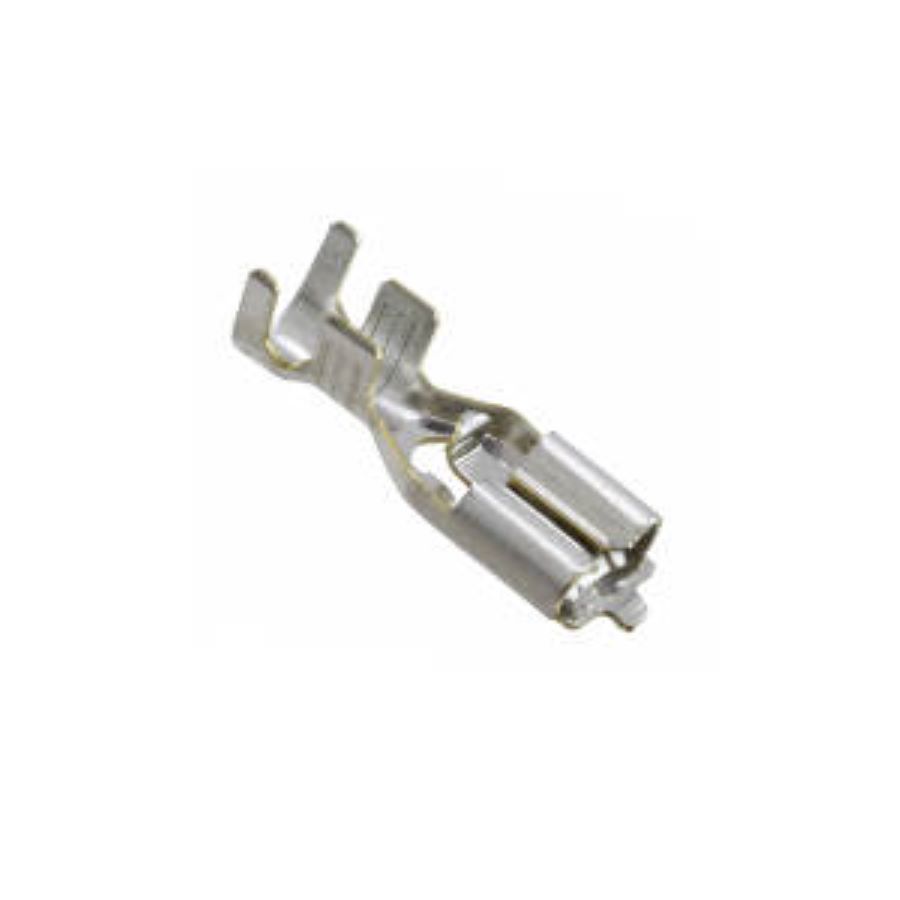

179975-1
Manufacturer:
TE Connectivity
Mfr.Part #:
179975-1
Datasheet:
Description:
Terminals Free Hanging 10 AWG Female
| Parameter | Value |
|---|---|
| Length | 21.2 mm |
| Termination | Receptacle |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Unplated |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 4.2926 mm |
| Wire/Cable Gauge | 10 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 10 AWG |
| Wire Gauge (Min) | 15 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 4.3 mm |
| Contact Gender | Female |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 6.2992 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.51 mm |
Stock: 4944
Distributors
pcbx
pcbxUnit Price$0.46472
Ext.Price$0.46472
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46472 | $0.46472 |
| 10 | $0.23236 | $2.32360 |
| 50 | $0.17874 | $8.93700 |
| 100 | $0.13749 | $13.74900 |
| 500 | $0.10576 | $52.88000 |
| 1000 | $0.08135 | $81.35000 |
| 3000 | $0.06258 | $187.74000 |
| 5000 | $0.05969 | $298.45000 |
| 10000 | $0.05694 | $569.40000 |
| 30000 | $0.05431 | $1629.30000 |
| 50000 | $0.05181 | $2590.50000 |
| 100000 | $0.04942 | $4942.00000 |
